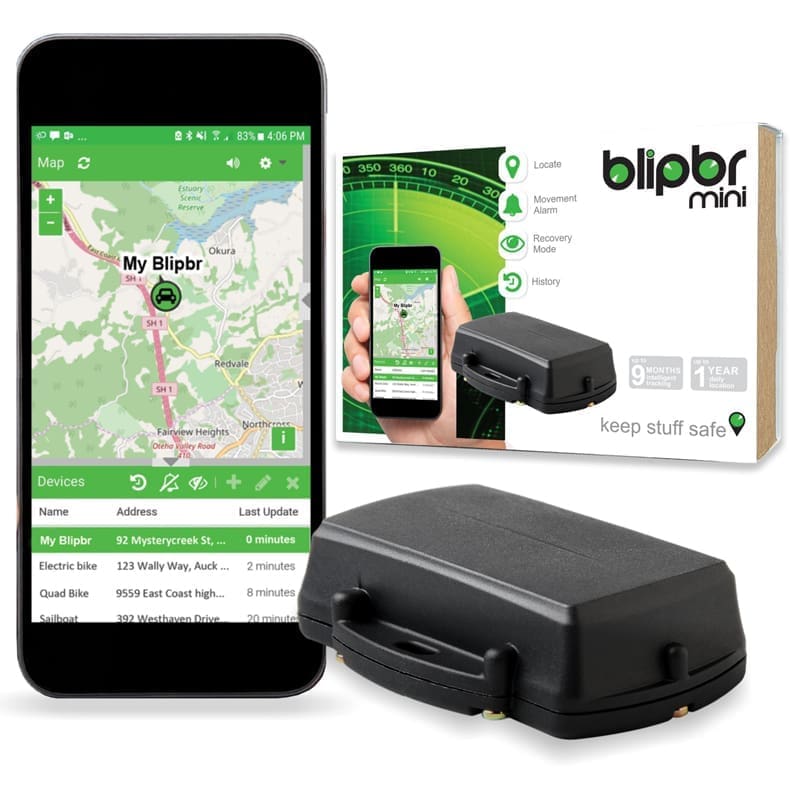

Blipbr Mini | GPS Asset Tracker

From: $159.00 excl. GST

Smallest GPS with Cellular connectivity for maximum coverage

Compact, Tough IP68 Water & Dust proof housing

Screw holes & cable-tie slots for easy mounting

Uses 3 AAA Lithium consumer batteries (not included)

Up to 5 year daily location or 1 Year Intelligent Tracking*

Supplied with cellular SIM card installed and all data is included in the subscription pricing.

*Subject to volume of trips

Excludes Shipping & GST

SKU: MiniBlipbr Category:

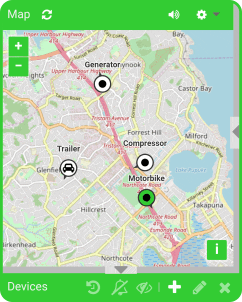

Blipbr Live view all assets on map

Locate

Easily keep an eye on all your stuff with the App or website.
Blipbr easily set a movement alert

Movement Alarm

Email and App alerts when your stuff moves!
Blipbr gps easyily set recovery mode for real-time tracking

Recovery Mode

Switch into Recovery Mode for real-time tracking.
Blipbe GPS quick history slider

Quick History

Keeps an accurate record of trip and location history.

Blipbr Mini Technical Specifications

CONNECTIVITY

4G LTE-M / NB-IoT uBlox SARA-R410M Modem operates on all major global LTE-M and NB-IoT bands.
Supported LTE bands: 1*, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 26*, 28 (*roaming bands)
SIM Size & Access Internal Nano 4FF SIM

BATTERIES

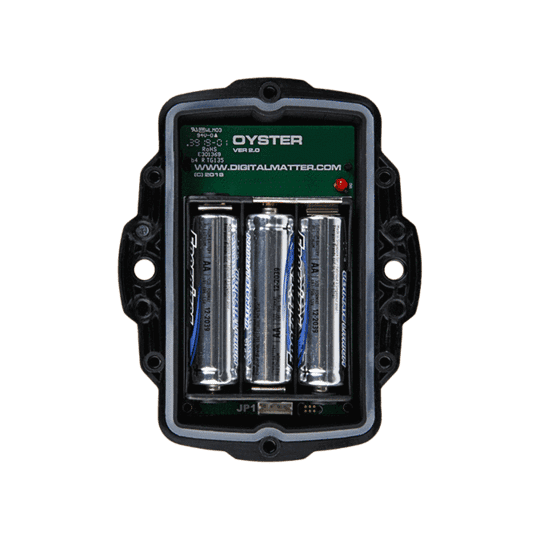

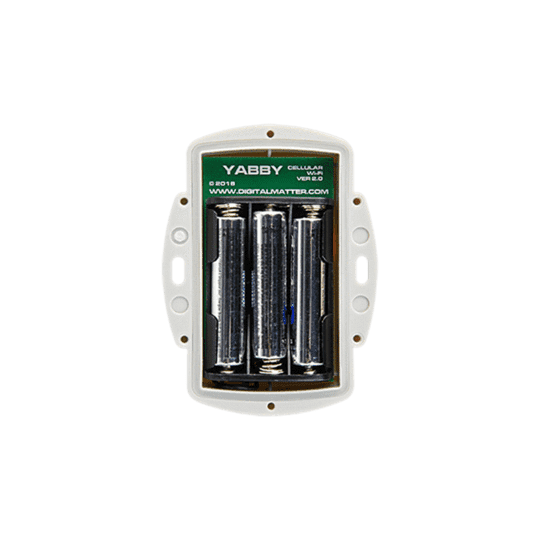

User-Replaceable Batteries 3 x AAA
Battery Life Up to 5 years of battery life at once-daily heartbeats and 1 Year Intelligent Tracking (Adaptive).
Supported Battery Types Lithium (LiFeS2)

LOCATION

Module uBlox EVA-M8
Constellation Concurrent GPS / GLONASS
Channels 72 Channel High Sensitivity Receiver
Tracking Sensitivity -167dBm industry-leading tracking performance
AssistNow Offline GNSS aiding data (such as ephemeris, time, coarse position) for a faster Time To First Fix (TTFF).
Low Noise Amplifier GPS signals are boosted by a unique low-noise amplifier (LNA) allowing operation where other units fail.



POWER

Input Voltage 4-6V DC
Sleep Current <10uA*
*Average current in lowest power configuration.

MECHANICS / DESIGN

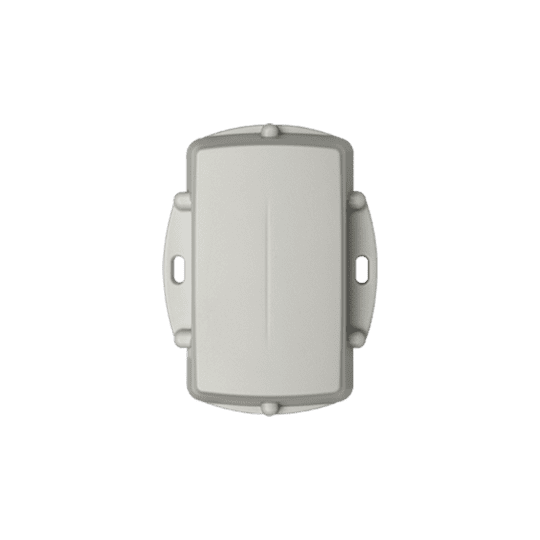

Dimensions Standard – 85 x 63 x 24 mm (3.35 x 2.48 x .94″)
Livestock Collar – 109 x 60 x 30 (4.29 x 2.36 x 1.18″)
Weight 101 g (3.56 oz)
Housing Ultra-Rugged Nylon Glass
IP Rating IP68 rated housing ensures device can withstand fine dust, high-pressure spray, submersion for 30 mins in 1m of water, and extreme temperatures.
Installation Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more.
Collar housing available for securing device to livestock.
Operating Temperature -20°C to +60°C
GPS Antenna Internal
Cellular Antenna Internal
3-Axis Accelerometer 3-Axis Accelerometer to detect movement and high G-force events.
Diagnostic LED Diagnostic LED signifies operation status.
Flash Memory Store weeks of records if device is out of cellular coverage. Storage capacity for over 10 days of continuous 30-second logging.

SMARTS

Impact Detection Configure impact-detection alerts when G-forces are exceeded by a user-defined threshold.
Periodic or Movement-Based Configure parameters to send updates based on set time intervals (1x, 3x, 5x a day, etc) or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.
Theft Recovery Switch to Recovery Mode in the case of theft or loss to activate real-time tracking at 30-second intervals for asset retrieval.
Sleep Mode Stationary devices enter sleep mode, switching the update rate to only twice per day until movement occurs to conserve battery life and optimize data usage.

SECURITY

Data Security Military-level AES-256 Encryption from device to OEM Server to protect the integrity and confidentiality of telematics data.
Data forwarded to third-party systems is sent via HTTPS for end-to-end security.

WARRANTY

Manufacturer’s Warranty One year manufacturer’s warranty.

CERTIFICATIONS

Please contact us for a full list of compliance specifications and documentation for your region. 4G – FCC, ISED, ACMA (DoC), VERIZON, CE (DoC)
2G – ICASA, CE (DoC)

Additional information

add Subscription

Add Subscription, 1 Year, 2Year, 3 Year
