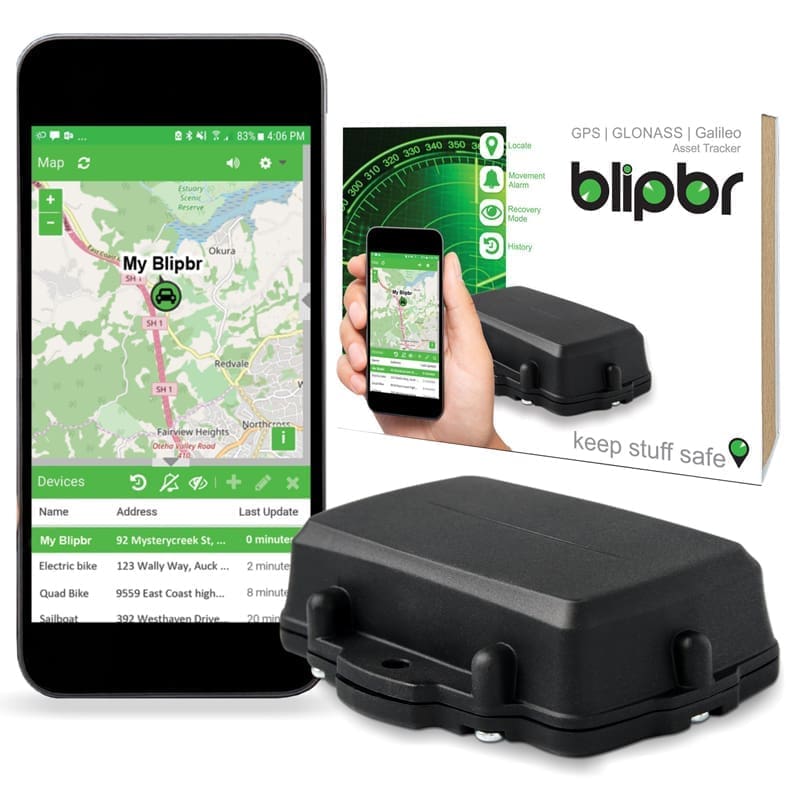

Blipbr | GPS Asset Tracker
From: $199.00 excl. GST
Small and compact GPS (GPS, GLONASS & Galileo) with cellular connectivity for maximum coverage.
Tough IP68 Water & Dust proof housing
Screw holes & cable-tie slots for easy mounting
Uses 3 AA Lithium consumer batteries (not included)
Up to 10 year’s daily location or 3 year Intelligent Tracking*
Supplied with cellular SIM card installed and all data is included in the subscription pricing.
*Subject to volume of trips
Excludes Shipping & GST
Locate
Easily keep an eye on all your stuff with the App or website.
Movement Alarm
Email and App alerts when your stuff moves!
Recovery Mode
Switch into Recovery Mode for real-time tracking.
Quick History
Keeps an accurate record of trip and location history.
Blipbr Technical Specifications
CONNECTIVITY
| 4G LTE-M / NB-IoT | uBlox SARA-R410M Modem operates on all major global LTE-M and NB-IoT bands. Supported LTE bands: 1*, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 26*, 28 (*roaming bands) |
| SIM Size & Access | Internal Micro 3FF SIM |
BATTERIES
| User-Replaceable Batteries | 3 x AA |
| Battery Life | Up to 10 years of battery life at once-daily heartbeats / 3 Years Intelligent Tracking (Adaptive) ,1 year battery life at once-hourly heartbeats. |
| Supported Battery Types | Lithium (LiFeS2) Lithium Thionyl Chloride (LTC) |
LOCATION
| Module | uBlox EVA-M8 |
| Constellation | Concurrent GPS / GLONASS |
| Channels | 72 Channel High Sensitivity Receiver |
| Tracking Sensitivity | -167dBm industry-leading tracking performance |
| AssistNow Offline | GNSS aiding data (such as ephemeris, time, coarse position) for a faster Time To First Fix (TTFF). |
| Low Noise Amplifier | GPS signals are boosted by a unique low-noise amplifier (LNA) allowing operation where other units fail. |
POWER
| Input Voltage | 5-16V DC |
| Sleep Current | <10uA* *Average current in lowest power configuration. |
MECHANICS / DESIGN
| Dimensions | 108 x 86 x 31 mm (4.25 x 3.39 x 1.22″) |
| Weight | 194 g (6.84 oz) |
| Housing | Ultra-Rugged Nylon Glass |
| IP Rating | IP68 rated housing ensures device can withstand fine dust, high-pressure spray, submersion for 30 mins in 1m of water, and extreme temperatures. |
| Installation | Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. |
| Operating Temperature | -20°C to +60°C For operation in extreme temperatures use LTC Batteries. |
| GPS Antenna | Internal |
| Cellular Antenna | Internal |
| 3-Axis Accelerometer | 3-Axis Accelerometer to detect movement, high G-force events, and more. |
| Diagnostic LED | Diagnostic LED signifies operation status. |
| Flash Memory | Store weeks of records if device is out of cellular coverage. Storage capacity for over 10 days of continuous 30-second logging. |
SMARTS
| Battery Life Monitoring | Built-in Battery Meter for monitoring battery use and remaining life predictions. |
| Impact Detection | Configure impact-detection alerts when G-forces are exceeded by a user-defined threshold. |
| Periodic or Movement-Based | Configure parameters to send updates based on set time intervals (1x, 3x, 5x a day, etc) or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary. |
| Theft Recovery | Switch to Recovery Mode in the case of theft or loss to activate real-time tracking at 30-second intervals for asset retrieval. |
| Sleep Mode | Stationary devices enter sleep mode, switching the update rate to only twice per day until movement occurs to conserve battery life and optimize data usage. |
| Tilt Detection | 1-axis angle reporting, tip detection, and rotation counting. |
DEVICE MANAGEMENT
| Flexible Configuration | Configure device parameters such as heartbeat rate, movement and accelerometer settings, and more to fit any tracking application. |
SECURITY
| Data Security | Military-level AES-256 Encryption from device to OEM Server to protect the integrity and confidentiality of telematics data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security. |
WARRANTY
| Manufacturer’s Warranty | One year manufacturer’s warranty. |
CERTIFICATIONS
| Please contact us for a full list of compliance specifications and documentation for your region. | 4G – FCC, ISED, ACMA (DoC), PTCRB, AT&T, VERIZON, CE (DoC), Environmental Testing (Temperature, Shock, Vibration) 2G – ICASA, CE (DoC) |
Additional information
| add Subscription | Add Subscription, 1 Year, 2Year, 3 Year |
|---|
