How will Blipbr keep my stuff safe?
Place a Blipbr on any valuable item and the intelligent motion sensor and high-sensitivity GPS will detect any movement and display the location on your phone with immediate App notifications and email alerts.
Blipbr utilises the 4 key functions below…
Blipbr's 4 key functions keep your stuff safe!
Locate | Movement Alarm | Recovery Mode | Quick History

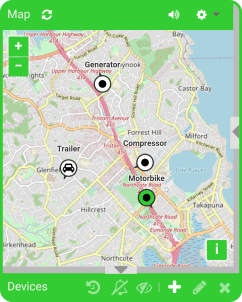

Locate
Easily keep an eye on all your stuff with the App or website.
Movement Alarm
Email and App alerts when your stuff moves!
Recovery Mode
Switch into Recovery Mode for real-time tracking.
Quick History
Keeps an accurate record of trip and location history.
Locate
Blipbr’s high-accuracy GPS locates stuff anywhere on the planet and shows you where all your valuable assets are on the App. As long as Blipbr is within cellular coverage you will see where your stuff is!
Movement Alarm
The 3D accelerometer detects any movement of the Blipbr and alerts when your stuff leaves it’s set location.
Movement alerts keep assets safe
Set Recovery Mode to retrieve lost or stolen assets!
Recovery Mode
Switch your Blipbr into Recovery Mode from the App to increase tracking frequency and accurately locate your valuables in real-time.
Quick History
Intelligent tracking means you can see where your stuff has been and how it got there!
There is also a detailed Asset Trip history.
Water & Dust Proof
The rugged housing is IP67 rated for exposed applications.
Looong battery life
Up to 10 years location once daily or up to 2 years adaptive tracking.
Accelerometer
Detects any movement and wakes the device from battery saving mode.ve tracking.
Place 'n trace
Compact and easy to conceal and screw mount or cable-tie down.
Size matters!
Sometimes you need it small so it can easily be concealed, and sometimes you want it extra large, so the battery life lasts, and lasts and lasts…
A range of 3 different Blipbr sizes allows you to balance battery life longevity with an appropriately sized unit for every type of asset..
*Actual size compared to regular office pen
Blipbr Battery life over 10 Years
Only One Update Daily
- Blipbr Mini
- Blipbr
- Blipbr UltraMax
Blipbr Battery life over 3 Years
Intelligent Trip Tracking
- Blipbr Mini
- Blipbr
- Blipbr UltraMax
The ultra-smart tech inside every Blipbr
Packed with intelligence and smarts to make your life easy!
Intelligent Tracking
Intelligent tracking identifies and records movement and trips.
Tamper Alert
BlipbrMax is available with an optional magnetic tamper sensor.
Dual GPS
Uses both the GPS & GLONASS networks for better performance.
Accurate
Assisted GPS means the Blipbr can be accurate up to 2.5 metres.
Flash Memory
Stores up to 50,000 data points when outside coverage.
Replaceable Batteries
Readily available consumer Lithium or LTC batteries.
Easily Concealed
Easily concealed and doesn’t need direct sight of satellites in the sky.
Small & Compact
Designed to fit on, in or under assets of all shapes and sizes.
Blipbr Technical Specifications
Click on a link below to see the specifications.
Blipbr Mini Technical Specifications
CONNECTIVITY
The Blipbr Mini GPS is available in either 2G or 4G LTE-M / NB-IoT.
| 2G | 2G: SARA-G350-02S-01 850/900/1800/1900 MHz |
| 4G LTE-M / NB-IoT | uBlox SARA-R410M Modem operates on all major global LTE-M and NB-IoT bands. Supported LTE bands: 1*, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 26*, 28 (*roaming bands) |
| SIM Size & Access | Internal Nano 4FF SIM |
BATTERIES
| User-Replaceable Batteries | 3 x AAA |
| Battery Life | Up to 3 years of battery life at once-daily heartbeats. |
| Supported Battery Types | Lithium (LiFeS2) |
LOCATION
| Module | uBlox EVA-M8 |
| Constellation | Concurrent GPS / GLONASS |
| Channels | 72 Channel High Sensitivity Receiver |
| Tracking Sensitivity | -167dBm industry-leading tracking performance |
| AssistNow Offline | GNSS aiding data (such as ephemeris, time, coarse position) for a faster Time To First Fix (TTFF). |
| Low Noise Amplifier | GPS signals are boosted by a unique low-noise amplifier (LNA) allowing operation where other units fail. |
POWER
| Input Voltage | 4-6V DC |
| Sleep Current | <10uA* *Average current in lowest power configuration. |
MECHANICS / DESIGN
| Dimensions | Standard – 85 x 63 x 24 mm (3.35 x 2.48 x .94″) Livestock Collar – 109 x 60 x 30 (4.29 x 2.36 x 1.18″) |
| Weight | 101 g (3.56 oz) |
| Housing | ABS Polycarbonate Plastic |
| IP Rating | IP67 rated housing ensures device can withstand fine dust, high-pressure spray, submersion for 30 mins in 1m of water, and extreme temperatures. |
| Installation | Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. Collar housing available for securing device to livestock. |
| Operating Temperature | -20°C to +60°C |
| GPS Antenna | Internal |
| Cellular Antenna | Internal |
| 3-Axis Accelerometer | 3-Axis Accelerometer to detect movement and high G-force events. |
| Diagnostic LED | Diagnostic LED signifies operation status. |
| Flash Memory | Store weeks of records if device is out of cellular coverage. Storage capacity for over 10 days of continuous 30-second logging. |
SMARTS
| Impact Detection | Configure impact-detection alerts when G-forces are exceeded by a user-defined threshold. |
| Periodic or Movement-Based | Configure parameters to send updates based on set time intervals (1x, 3x, 5x a day, etc) or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary. |
| Theft Recovery | Switch to Recovery Mode in the case of theft or loss to activate real-time tracking at 30-second intervals for asset retrieval. |
| Sleep Mode | Stationary devices enter sleep mode, switching the update rate to only twice per day until movement occurs to conserve battery life and optimize data usage. |
SECURITY
| Data Security | Military-level AES-256 Encryption from device to OEM Server to protect the integrity and confidentiality of telematics data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security. |
WARRANTY
| Manufacturer’s Warranty | One year manufacturer’s warranty. |
CERTIFICATIONS
| Please contact us for a full list of compliance specifications and documentation for your region. | 4G – FCC, ISED, ACMA (DoC), VERIZON, CE (DoC) 2G – ICASA, CE (DoC) |

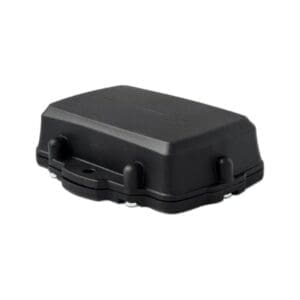

Blipbr Technical Specifications
CONNECTIVITY
The Blipbr is available in either 2G or 4G LTE-M / NB-IoT.
| 2G | 2G: SARA-G350-02S-01 850/900/1800/1900 MHz |
| 4G LTE-M / NB-IoT | uBlox SARA-R410M Modem operates on all major global LTE-M and NB-IoT bands. Supported LTE bands: 1*, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 26*, 28 (*roaming bands) |
| SIM Size & Access | Internal Micro 3FF SIM |
BATTERIES
| User-Replaceable Batteries | 3 x AA |
| Battery Life | Up to 5 years of battery life at once-daily heartbeats / 1 year battery life at once-hourly heartbeats. |
| Supported Battery Types | Lithium (LiFeS2) Lithium Thionyl Chloride (LTC) |
LOCATION
| Module | uBlox EVA-M8 |
| Constellation | Concurrent GPS / GLONASS |
| Channels | 72 Channel High Sensitivity Receiver |
| Tracking Sensitivity | -167dBm industry-leading tracking performance |
| AssistNow Offline | GNSS aiding data (such as ephemeris, time, coarse position) for a faster Time To First Fix (TTFF). |
| Low Noise Amplifier | GPS signals are boosted by a unique low-noise amplifier (LNA) allowing operation where other units fail. |
POWER
| Input Voltage | 5-16V DC |
| Sleep Current | <10uA* *Average current in lowest power configuration. |
MECHANICS / DESIGN
| Dimensions | 108 x 86 x 31 mm (4.25 x 3.39 x 1.22″) |
| Weight | 194 g (6.84 oz) |
| Housing | Ultra-Rugged Nylon Glass |
| IP Rating | IP67 rated housing ensures device can withstand fine dust, high-pressure spray, submersion for 30 mins in 1m of water, and extreme temperatures. |
| Installation | Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. |
| Operating Temperature | -20°C to +60°C For operation in extreme temperatures use LTC Batteries. |
| GPS Antenna | Internal |
| Cellular Antenna | Internal |
| 3-Axis Accelerometer | 3-Axis Accelerometer to detect movement, high G-force events, and more. |
| Diagnostic LED | Diagnostic LED signifies operation status. |
| Flash Memory | Store weeks of records if device is out of cellular coverage. Storage capacity for over 10 days of continuous 30-second logging. |
SMARTS
| Battery Life Monitoring | Built-in Battery Meter for monitoring battery use and remaining life predictions. |
| Impact Detection | Configure impact-detection alerts when G-forces are exceeded by a user-defined threshold. |
| Periodic or Movement-Based | Configure parameters to send updates based on set time intervals (1x, 3x, 5x a day, etc) or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary. |
| Theft Recovery | Switch to Recovery Mode in the case of theft or loss to activate real-time tracking at 30-second intervals for asset retrieval. |
| Sleep Mode | Stationary devices enter sleep mode, switching the update rate to only twice per day until movement occurs to conserve battery life and optimize data usage. |
| Tilt Detection | 1-axis angle reporting, tip detection, and rotation counting. |
DEVICE MANAGEMENT
| Flexible Configuration | Configure device parameters such as heartbeat rate, movement and accelerometer settings, and more to fit any tracking application. |
SECURITY
| Data Security | Military-level AES-256 Encryption from device to OEM Server to protect the integrity and confidentiality of telematics data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security. |
WARRANTY
| Manufacturer’s Warranty | One year manufacturer’s warranty. |
CERTIFICATIONS
| Please contact us for a full list of compliance specifications and documentation for your region. | 4G – FCC, ISED, ACMA (DoC), PTCRB, AT&T, VERIZON, CE (DoC), Environmental Testing (Temperature, Shock, Vibration) 2G – ICASA, CE (DoC) |
.

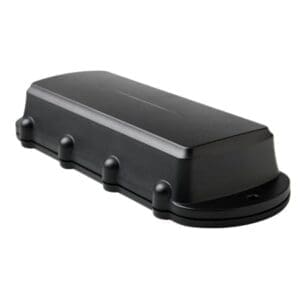

Blipbr UltraMax Technical Specifications
CONNECTIVITY
The Battery UltraMax is available in either 2G or 4G LTE-M / NB-IoT.
| 2G | 2G: SARA-G350-02S-01 850/900/1800/1900 MHz |
| 4G LTE-M / NB-IoT | uBlox SARA-R410M Modem operates on all major global LTE-M and NB-IoT bands. Supported LTE bands: 1*, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 26*, 28 (*roaming bands) |
| Bluetooth® 5.0 Gateway | Bluetooth® 5.0 gateway reports nearby Bluetooth® tags and sensors for affordable tagged asset management and sensor monitoring. |
| SIM Size & Access | Internal Nano 4FF SIM |
BATTERIES
| User-Replaceable Batteries | 2 x D Cell (3.7V per cell) |
| Battery Life | Up to 10 years of battery life at once-daily heartbeats / 5 year battery life at once-hourly heartbeats. |
| Supported Battery Types | Lithium Thionyl Chloride (LTC) |
LOCATION
| Module | uBlox EVA-M8 |
| Constellation | Concurrent GPS / GLONASS |
| Channels | 72 Channel High Sensitivity Receiver |
| Tracking Sensitivity | -167dBm industry-leading tracking performance |
| AssistNow Offline | GNSS aiding data (such as ephemeris, time, coarse position) for a faster Time To First Fix (TTFF). |
| Low Noise Amplifier | GPS signals are boosted by a unique low-noise amplifier (LNA) allowing operation where other units fail. |
| Cell Tower Fallback | Cell tower fallback for positioning when GPS fails. |
POWER
| Input Voltage | 5-16V DC |
| Sleep Current | <10uA* *Average current in lowest power configuration. |
MECHANICS / DESIGN
| Dimensions | 224 x 91 x 41 mm (8.82 x 3.58 x 1.61″) |
| Weight | 443 g (15.63 oz) |
| Housing | Ultra-Rugged Nylon Glass |
| IP Rating | IP67 rated housing ensures device can withstand fine dust, high-pressure spray, submersion for 30 mins in 1m of water, and extreme temperatures. |
| Installation | Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. |
| Operating Temperature | -20°C to +60°C For operation in extreme temperatures use LTC Batteries. |
| GPS Antenna | Internal |
| Cellular Antenna | Internal |
| 3-Axis Accelerometer | 3-Axis Accelerometer to detect movement, high G-force events, and more. |
| Diagnostic LED | Diagnostic LED signifies operation status. |
| Flash Memory | Store weeks of records if device is out of ellular coverage. Storage capacity for over 10 days of continuous 30-second logging. |
SMARTS
| Battery Life Monitoring | Built-in Battery Meter for monitoring battery use and remaining life predictions. |
| Impact Detection | Configure impact-detection alerts when G-forces are exceeded by a user-defined threshold. |
| Periodic or Movement-Based | Configure parameters to send updates based on set time intervals (1x, 3x, 5x a day, etc) or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary. |
| Theft Recovery | Switch to Recovery Mode in the case of theft or loss to activate real-time tracking at 30-second intervals for asset retrieval. |
| Sleep Mode | Stationary devices enter sleep mode, switching the update rate to only twice per day until movement occurs to conserve battery life and optimize data usage. |
| Tamper Alerts | Magnetic tamper switch provides an instant alert if the device is removed from your asset. |
| Tilt Detection | 1-axis angle reporting, tip detection, and rotation counting. |
DEVICE MANAGEMENT
| Flexible Configuration | Configure device parameters such as heartbeat rate, movement and accelerometer settings, and more to fit any tracking application. |
SECURITY
| Data Security | Military-level AES-256 Encryption from device to OEM Server to protect the integrity and confidentiality of telematics data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security. |
WARRANTY
| Manufacturer’s Warranty | One year manufacturer’s warranty. |
CERTIFICATIONS
| Please contact us for a full list of compliance specifications and documentation for your region. | 4G – FCC, ISED, ACMA (DoC), Bluetooth® Certified, VERIZON, CE (DoC), Telstra 2G – ICASA, Bluetooth® Certified, CE (DoC) |
Blipbr Mini
GPS Asset Tracker31 Day Free Trial thereafter
NZ $7.49 Month or NZ$74.99 Annual Plan - includes all cellular data
3 AAA Lithium Batteries
- 5 Year battery life Daily Updates*
- Up to 1 Year battery life Intelligent tracking*
- Position every 15 minutes
- Start & End of Trip Upload
- Recovery Mode: Every 30 seconds
Blipbr
GPS Asset Tracker31 Day Free Trial thereafter
NZ $7.49 Month or NZ$74.99 Annual Plan - includes all cellular data
3 AA Lithium Batteries
- 10 Year battery life Daily Updates*
- Up to 3 Year battery life Intelligent tracking*
- Position every 2 minutes
- Start, End & 30 minute uploads in Trip
- Recovery Mode: Live Tracking
Blipbr UltraMax
GPS Asset Tracker31 Day Free Trial thereafter
NZ $7.49 Month or NZ$74.99 Annual Plan - includes all cellular data
2 D-size LTC Batteries
- 10 Year battery life Daily Updates*
- Up to 3 Years battery life Intelligent tracking*
- Position every 2 minutes
- Start, End & 30 minute uploads in Trip
- Recovery Mode: Live Tracking
What does the Blipbr App do?
The Blipbr App gives you an easy to use and simple interface to locate your stuff, set alerts and view history.
