How Blipbr Works

See locations of all your stuff, set movement alerts and recovery mode and view history.

How will Blipbr keep my stuff safe?

Place a Blipbr on any valuable item and the intelligent motion sensor and high-sensitivity GPS will detect any movement and display the location on your phone with immediate App notifications and email alerts.

Blipbr utilises the 4 key functions below…

Blipbr's 4 key functions keep your stuff safe!

Locate | Movement Alarm | Recovery Mode | Quick History

Live tracking of all your assets

Locate

Easily keep an eye on all your stuff with the App or website.

Blipbr easily set a movement alert

Movement Alarm

Email and App alerts when your stuff moves!

Blipbr gps easyily set recovery mode for real-time tracking

Recovery Mode

Switch into Recovery Mode for real-time tracking.

Blipbe GPS quick history slider

Quick History

Keeps an accurate record of trip and location history.

Blipbr locate assets anywhere

Locate

Blipbr’s high-accuracy GPS locates stuff anywhere on the planet and shows you where all your valuable assets are on the App. As long as Blipbr is within cellular coverage you will see where your stuff is!

Movement Alarm

The 3D accelerometer detects any movement of the Blipbr and alerts when your stuff leaves it’s set location.
Movement alerts keep assets safe
Set Recovery Mode to retrieve lost or stolen assets!

Blipbr Movement Alert to keep assets safe
Blipbr Recovery Mode for real time gps tracking

Recovery Mode

Switch your Blipbr into Recovery Mode from the App to increase tracking frequency and accurately locate your valuables in real-time.

Quick History

Intelligent tracking means you can see where your stuff has been and how it got there!
There is also a detailed Asset Trip history.

Blipbr Recovery Mode for real time gps tracking
agsdi-drop

Water & Dust Proof

The rugged housing is IP67 rated for exposed applications.

agsdi-battery-level3

Looong battery life

Up to 10 years location once daily or up to 2 years adaptive tracking.

1

Accelerometer

Detects any movement and wakes the device from battery saving mode.ve tracking.

Place 'n trace

Compact and easy to conceal and screw mount or cable-tie down.

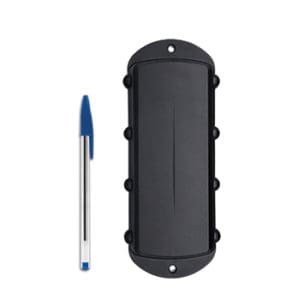

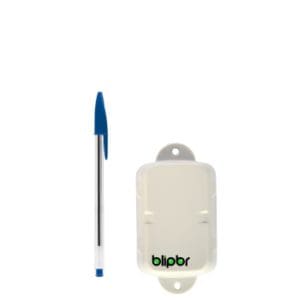

Blipbr range of 3 sizes to fit anyy asset

Size matters!

Sometimes you need it small so it can easily be concealed, and sometimes you want it extra large, so the battery life lasts, and lasts and lasts…
A range of 3 different Blipbr sizes allows you to balance battery life longevity with an appropriately sized unit for every type of asset..

*Actual size compared to regular office pen

Blipbr Battery life over 10 Years

Only One Update Daily

  • Blipbr Mini
  • Blipbr
  • Blipbr UltraMax

Blipbr Battery life over 3 Years

Intelligent Trip Tracking

  • Blipbr Mini
  • Blipbr
  • Blipbr UltraMax

The ultra-smart tech inside
every Blipbr

Packed with intelligence and smarts to make your life easy!

Intelligent Tracking

Intelligent tracking identifies and records movement and trips.

1

Tamper Alert

BlipbrMax is available with an optional magnetic tamper sensor.

agsdi-rss-2

Dual GPS

Uses both the GPS & GLONASS networks for better performance.

Accurate

Assisted GPS means the Blipbr can be accurate up to 2.5 metres.

Flash Memory

Stores up to 50,000 data points when outside coverage.

agsdi-battery-level1

Replaceable Batteries

Readily available consumer Lithium or LTC batteries.

agsdi-eye-closed

Easily Concealed

Easily concealed and doesn’t need direct sight of satellites in the sky.

agsdi-ruler

Small & Compact

Designed to fit on, in or under assets of all shapes and sizes.

Blipbr Technical Specifications

Click on a link below to see the specifications.

Blipbr Mini Technical Specifications

CONNECTIVITY

The Blipbr Mini GPS is available in either 2G or 4G LTE-M / NB-IoT.

2G 2G: SARA-G350-02S-01
850/900/1800/1900 MHz
4G LTE-M / NB-IoT uBlox SARA-R410M Modem operates on all major global LTE-M and NB-IoT bands.
Supported LTE bands: 1*, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 26*, 28 (*roaming bands)
SIM Size & Access Internal Nano 4FF SIM

BATTERIES

User-Replaceable Batteries 3 x AAA
Battery Life Up to 3 years of battery life at once-daily heartbeats.
Supported Battery Types Lithium (LiFeS2)

LOCATION

Module uBlox EVA-M8
Constellation Concurrent GPS / GLONASS
Channels 72 Channel High Sensitivity Receiver
Tracking Sensitivity -167dBm industry-leading tracking performance
AssistNow Offline GNSS aiding data (such as ephemeris, time, coarse position) for a faster Time To First Fix (TTFF).
Low Noise Amplifier GPS signals are boosted by a unique low-noise amplifier (LNA) allowing operation where other units fail.



POWER

Input Voltage 4-6V DC
Sleep Current <10uA*
*Average current in lowest power configuration.

MECHANICS / DESIGN

Dimensions Standard – 85 x 63 x 24 mm (3.35 x 2.48 x .94″)
Livestock Collar – 109 x 60 x 30 (4.29 x 2.36 x 1.18″)
Weight 101 g (3.56 oz)
Housing ABS Polycarbonate Plastic
IP Rating IP67 rated housing ensures device can withstand fine dust, high-pressure spray, submersion for 30 mins in 1m of water, and extreme temperatures.
Installation Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more.
Collar housing available for securing device to livestock.
Operating Temperature -20°C to +60°C
GPS Antenna Internal
Cellular Antenna Internal
3-Axis Accelerometer 3-Axis Accelerometer to detect movement and high G-force events.
Diagnostic LED Diagnostic LED signifies operation status.
Flash Memory Store weeks of records if device is out of cellular coverage. Storage capacity for over 10 days of continuous 30-second logging.

SMARTS

Impact Detection Configure impact-detection alerts when G-forces are exceeded by a user-defined threshold.
Periodic or Movement-Based Configure parameters to send updates based on set time intervals (1x, 3x, 5x a day, etc) or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.
Theft Recovery Switch to Recovery Mode in the case of theft or loss to activate real-time tracking at 30-second intervals for asset retrieval.
Sleep Mode Stationary devices enter sleep mode, switching the update rate to only twice per day until movement occurs to conserve battery life and optimize data usage.

SECURITY

Data Security Military-level AES-256 Encryption from device to OEM Server to protect the integrity and confidentiality of telematics data.
Data forwarded to third-party systems is sent via HTTPS for end-to-end security.

WARRANTY

Manufacturer’s Warranty One year manufacturer’s warranty.

CERTIFICATIONS

Please contact us for a full list of compliance specifications and documentation for your region. 4G – FCC, ISED, ACMA (DoC), VERIZON, CE (DoC)
2G – ICASA, CE (DoC)

Blipbr Technical Specifications

CONNECTIVITY

The Blipbr is available in either 2G or 4G LTE-M / NB-IoT.

2G 2G: SARA-G350-02S-01
850/900/1800/1900 MHz
4G LTE-M / NB-IoT uBlox SARA-R410M Modem operates on all major global LTE-M and NB-IoT bands.
Supported LTE bands: 1*, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 26*, 28 (*roaming bands)
SIM Size & Access Internal Micro 3FF SIM

BATTERIES

User-Replaceable Batteries 3 x AA
Battery Life Up to 5 years of battery life at once-daily heartbeats / 1 year battery life at once-hourly heartbeats.
Supported Battery Types Lithium (LiFeS2)
Lithium Thionyl Chloride (LTC)

LOCATION

Module uBlox EVA-M8
Constellation Concurrent GPS / GLONASS
Channels 72 Channel High Sensitivity Receiver
Tracking Sensitivity -167dBm industry-leading tracking performance
AssistNow Offline GNSS aiding data (such as ephemeris, time, coarse position) for a faster Time To First Fix (TTFF).
Low Noise Amplifier GPS signals are boosted by a unique low-noise amplifier (LNA) allowing operation where other units fail.



POWER

Input Voltage 5-16V DC
Sleep Current <10uA*
*Average current in lowest power configuration.



MECHANICS / DESIGN

Dimensions 108 x 86 x 31 mm (4.25 x 3.39 x 1.22″)
Weight 194 g (6.84 oz)
Housing Ultra-Rugged Nylon Glass
IP Rating IP67 rated housing ensures device can withstand fine dust, high-pressure spray, submersion for 30 mins in 1m of water, and extreme temperatures.
Installation Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more.
Operating Temperature -20°C to +60°C
For operation in extreme temperatures use LTC Batteries.
GPS Antenna Internal
Cellular Antenna Internal
3-Axis Accelerometer 3-Axis Accelerometer to detect movement, high G-force events, and more.
Diagnostic LED Diagnostic LED signifies operation status.
Flash Memory Store weeks of records if device is out of cellular coverage. Storage capacity for over 10 days of continuous 30-second logging.

SMARTS

Battery Life Monitoring Built-in Battery Meter for monitoring battery use and remaining life predictions.
Impact Detection Configure impact-detection alerts when G-forces are exceeded by a user-defined threshold.
Periodic or Movement-Based Configure parameters to send updates based on set time intervals (1x, 3x, 5x a day, etc) or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.
Theft Recovery Switch to Recovery Mode in the case of theft or loss to activate real-time tracking at 30-second intervals for asset retrieval.
Sleep Mode Stationary devices enter sleep mode, switching the update rate to only twice per day until movement occurs to conserve battery life and optimize data usage.
Tilt Detection 1-axis angle reporting, tip detection, and rotation counting.

DEVICE MANAGEMENT

Flexible Configuration Configure device parameters such as heartbeat rate, movement and accelerometer settings, and more to fit any tracking application.

SECURITY

Data Security Military-level AES-256 Encryption from device to OEM Server to protect the integrity and confidentiality of telematics data.
Data forwarded to third-party systems is sent via HTTPS for end-to-end security.

WARRANTY

Manufacturer’s Warranty One year manufacturer’s warranty.

CERTIFICATIONS

Please contact us for a full list of compliance specifications and documentation for your region. 4G – FCC, ISED, ACMA (DoC), PTCRB, AT&T, VERIZON, CE (DoC), Environmental Testing (Temperature, Shock, Vibration)
2G – ICASA, CE (DoC)

.

Blipbr UltraMax Technical Specifications

CONNECTIVITY

The Battery UltraMax is available in either 2G or 4G LTE-M / NB-IoT.

2G 2G: SARA-G350-02S-01
850/900/1800/1900 MHz
4G LTE-M / NB-IoT uBlox SARA-R410M Modem operates on all major global LTE-M and NB-IoT bands.
Supported LTE bands: 1*, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 26*, 28 (*roaming bands)
Bluetooth® 5.0 Gateway Bluetooth® 5.0 gateway reports nearby Bluetooth® tags and sensors for affordable tagged asset management and sensor monitoring.
SIM Size & Access Internal Nano 4FF SIM

BATTERIES

User-Replaceable Batteries 2 x D Cell (3.7V per cell)
Battery Life Up to 10 years of battery life at once-daily heartbeats / 5 year battery life at once-hourly heartbeats.
Supported Battery Types Lithium Thionyl Chloride (LTC)

LOCATION

Module uBlox EVA-M8
Constellation Concurrent GPS / GLONASS
Channels 72 Channel High Sensitivity Receiver
Tracking Sensitivity -167dBm industry-leading tracking performance
AssistNow Offline GNSS aiding data (such as ephemeris, time, coarse position) for a faster Time To First Fix (TTFF).
Low Noise Amplifier GPS signals are boosted by a unique low-noise amplifier (LNA) allowing operation where other units fail.
Cell Tower Fallback Cell tower fallback for positioning when GPS fails.



POWER

Input Voltage 5-16V DC
Sleep Current <10uA*
*Average current in lowest power configuration.



MECHANICS / DESIGN

Dimensions 224 x 91 x 41 mm (8.82 x 3.58 x 1.61″)
Weight 443 g (15.63 oz)
Housing Ultra-Rugged Nylon Glass
IP Rating IP67 rated housing ensures device can withstand fine dust, high-pressure spray, submersion for 30 mins in 1m of water, and extreme temperatures.
Installation Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more.
Operating Temperature -20°C to +60°C
For operation in extreme temperatures use LTC Batteries.
GPS Antenna Internal
Cellular Antenna Internal
3-Axis Accelerometer 3-Axis Accelerometer to detect movement, high G-force events, and more.
Diagnostic LED Diagnostic LED signifies operation status.
Flash Memory Store weeks of records if device is out of ellular coverage. Storage capacity for over 10 days of continuous 30-second logging.

SMARTS

Battery Life Monitoring Built-in Battery Meter for monitoring battery use and remaining life predictions.
Impact Detection Configure impact-detection alerts when G-forces are exceeded by a user-defined threshold.
Periodic or Movement-Based Configure parameters to send updates based on set time intervals (1x, 3x, 5x a day, etc) or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.
Theft Recovery Switch to Recovery Mode in the case of theft or loss to activate real-time tracking at 30-second intervals for asset retrieval.
Sleep Mode Stationary devices enter sleep mode, switching the update rate to only twice per day until movement occurs to conserve battery life and optimize data usage.
Tamper Alerts Magnetic tamper switch provides an instant alert if the device is removed from your asset.
Tilt Detection 1-axis angle reporting, tip detection, and rotation counting.

DEVICE MANAGEMENT

Flexible Configuration Configure device parameters such as heartbeat rate, movement and accelerometer settings, and more to fit any tracking application.

SECURITY

Data Security Military-level AES-256 Encryption from device to OEM Server to protect the integrity and confidentiality of telematics data.
Data forwarded to third-party systems is sent via HTTPS for end-to-end security.

WARRANTY

Manufacturer’s Warranty One year manufacturer’s warranty.

CERTIFICATIONS

Please contact us for a full list of compliance specifications and documentation for your region. 4G – FCC, ISED, ACMA (DoC), Bluetooth® Certified, VERIZON, CE (DoC), Telstra
2G – ICASA, Bluetooth® Certified, CE (DoC)

What does the Blipbr App do?

The Blipbr App gives you an easy to use and simple interface to locate your stuff, set alerts and view history.
